Populate Dependent Combo Boxes (Drop Down Boxes) In Access
When selecting the contents from a combo box, it is sometimes useful for the results of the first selection to be used as a filter for the second combo box. For example, suppose the first combo box was a list of purchase orders issued by a clothing manufacturer. After selecting a particular PO, then the clothing style numbers associated with the selected PO would be the only ones to populate the second dependent combo box (instead of all the style numbers from all the purchase orders).
A snippet of the form would appear as follows:
The record source for the PO combo box is a query that groups by PO Number from a purchase order table that contains all the POs and all the styles for each PO. The PO record source query appears as follows:
Once the PO number has been selected by the user, the value of the PO needs to be stored in a global variable visible to modules and other objects outside the form. This code would be triggered by the "After Update" event for the PO combo box.
Private Sub cmbPONumber_AfterUpdate()
' ***********************************************************************
' Store The PO Number Selected In A Global Variables
' ***********************************************************************
If IsNull(cmbPONumber.Value) Or cmbPONumber.Value = "" Then
Exit Sub
End If
strGlobalSelectedPONumber = cmbPONumber.Value
End Sub

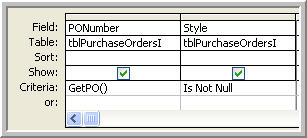

When the user selects the Style combo box, it will show a filtered list of styles associated only with the PO selected in the previous combo box. Filtering for styles associated with just the single selected PO is accomplished by using a row source query that filters on the PO number stored in the global variable:
The important item to notice here is that the query contains a function called "GetPO()". This function merely returns the value of the PO which was stored in a global variable as the result of the "After Update" event for the PO combo box. The program code for the GetPO() function (which is a public function contained in a module, not a form) is as follows:
Option Compare Database Option Explicit Public Function GetPO() GetPO = strGlobalSelectedPONumber End Function
The above function, when called from the criteria section of a query, filters the query results so that only the styles associated with the selected PO are delivered to the Style combo box. In other words, using this technique makes it unnecessary for the programmer to manually construct a SELECT statement with a WHERE clause as the row source for a filtered dependent combo box.
